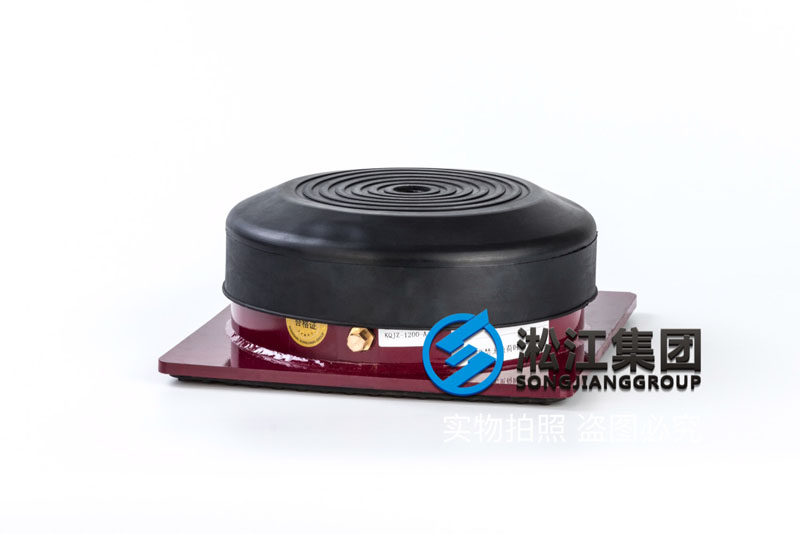

KQJZ-1200-A沖床空氣減震器

Product introduction:

Air pressure anti vibration device conforms to JISD-4101 air cushion pressure test standard

The natural frequency is 3Hz~5Hz, and the maximum use pressure is 4.5 Kg/cm^2.

Multi layer antirust paint is used in the body.

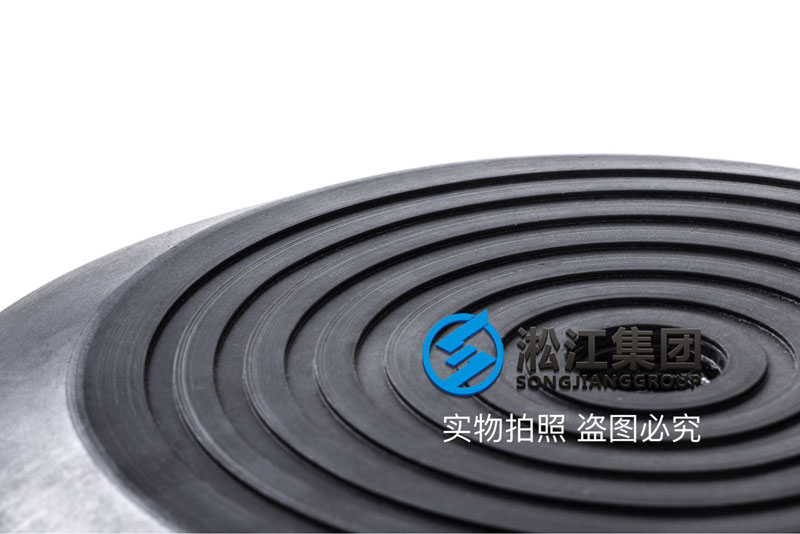

The body adopts Neoprene Rubber, which has good air tightness in one.

The anti vibration effect is very high, and the efficiency of the general equipment

The range of load is 50~3500Kg.

Oil proof cap can be added to prevent oil corrosion.

Use: chiller, punch, pump group.

KQJZ型空氣減震器外形尺寸和其他型號表詳見：KQJZ型空氣減震器安裝說明
KQJZ air shock absorber shape size and other types of table details以上KQJZ-1200-A沖床空氣減震器信息來源于上海淞江減震器集團有限公司官方網站減震器產品中心，淞江集團生產的空氣減震器可以將沖床的震動吸收90%，是目前全球減震效果最好的減震器產品，淞江集團生產的所有空氣減震器產品橡膠全部采用天然橡膠，含膠量高達50%，具有良好的密封性和長期使用壽命，維護簡單，是眾多高端環境的首要選擇，例如：星級酒店、高端寫字樓、樓層設備等對減震效果要求很高的環境。
KQJZ-1200-A above the water chiller air damper on information from Shanghai Songjiang absorber group limited official website shock absorber product center, air damper Songjiang Group production can punch the vibration and noise absorption in 90%, is currently the world's best damping effect of shock absorber products, all the air shock absorber rubber products Songjiang group the production of all the Dongfeng 1# natural rubber, rubber content is as high as *, with good sealing and long, simple maintenance, is the only option, many high-end environment such as hotels, office buildings, floors high end equipment requirements of high damping effect on the environment.
